MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Name: MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: MI300 MG300
Price: 126.00 USD
Availability: InStock

Détails du produit

Lieu d'origine: Chine

Nom de marque: SUMA

Numéro de modèle: MI300 MG300

Conditions de paiement et d'expédition

Quantité de commande min: 1

Prix: $108-145

Obtenez le meilleur prix

Contactez-nous maintenant

Les spécifications

Définition

Les spécifications

Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            MI300 cam clutch bearing 314Nm torque, one way bearing for printing, 300 cycles per minute cam bearing


Cote de précision:	P0	Type de joints:	Ouvrir
Taper:	Caméra, pochette de came	Capacité de couple:	314 nm
Indexation maximale:	300 cycle / min	Le couple de traction:	0.31 Nm
Poids:	10,8 kg	Alésage:	19 mm
Course externe:	77 millimètres	Voie de clavier:	5X2
PCD:	63 millimètres	HM:	13 mm
Trous taraudés:	4xm6xp1.0	Dépassement maximum:	2800 R/Min
Vitesse d'indexation maximale:	900 cycle / min

Cote de précision:	P0
Type de joints:	Ouvrir
Taper:	Caméra, pochette de came
Capacité de couple:	314 nm
Indexation maximale:	300 cycle / min
Le couple de traction:	0.31 Nm
Poids:	10,8 kg
Alésage:	19 mm
Course externe:	77 millimètres
Voie de clavier:	5X2
PCD:	63 millimètres
HM:	13 mm
Trous taraudés:	4xm6xp1.0
Dépassement maximum:	2800 R/Min
Vitesse d'indexation maximale:	900 cycle / min

Définition

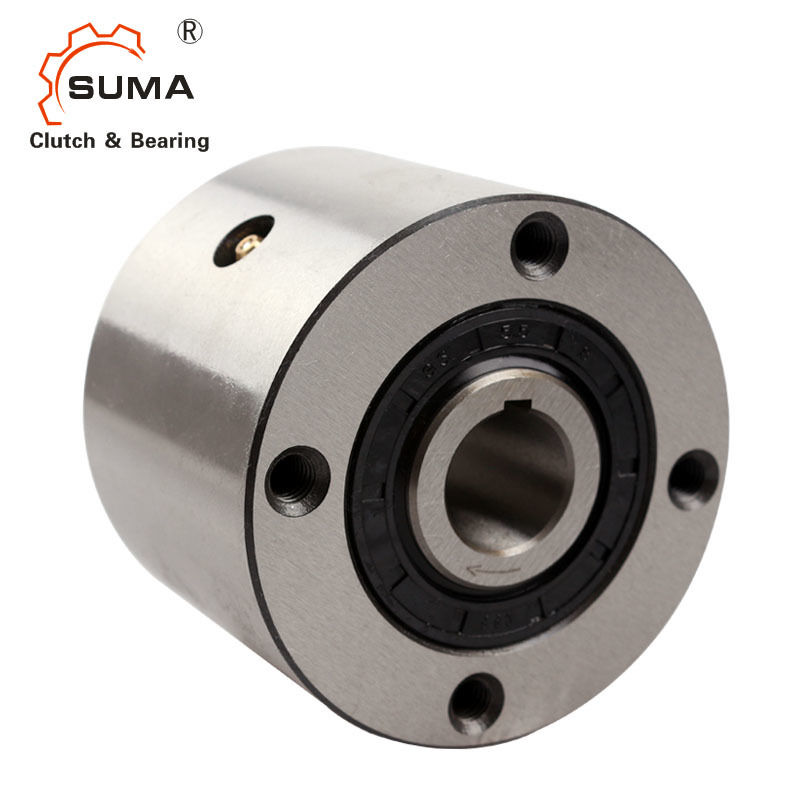

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

MI300 MG300 One Way Cam Clutch Bearing for Offset Printing Machine

Key Features

Primarily designed for indexing applications
Delivers high-precision intermittent feed
Ideal for medium- and low-speed indexing with short feed lengths
Excellent performance in continuous engagement operations with load changes

Specifications

Item	MI300 one way cam clutch
Precision	P0
Type	cam
Bore size (mm)	19
Outer race (mm)	77
Torque (KN)	314Nm
Max. Indexing (cycle/min)	300
Drag Torque(Nm)	0.31
Weight (kg)	1.8kg
Package	wooden box or customizable
Delivery time	5-7 days after order confirmed
Payment terms	L/C, T/T, D/P, D/A, Western Union

Technical Parameters

Model	Torque			Max.		Bore Size	Keyway	Dimensions (mm)			PCD	Tapped Holes	Weight (kg)
Model	Capacity (Nm)	Drag Torque (Nm)	Overrunning (r/min)	Indexing (cycle/min)	A	Bore Size	Keyway	B	C		PCD	Tapped Holes	Weight (kg)
MG 300	314	0.23	2800	900	19	5x2	63	77	60	66	4xM6xP1.0	1.8

Product Images

Application Examples

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

We highly encourage requesting samples for quality verification.

Can you promise timely delivery?
